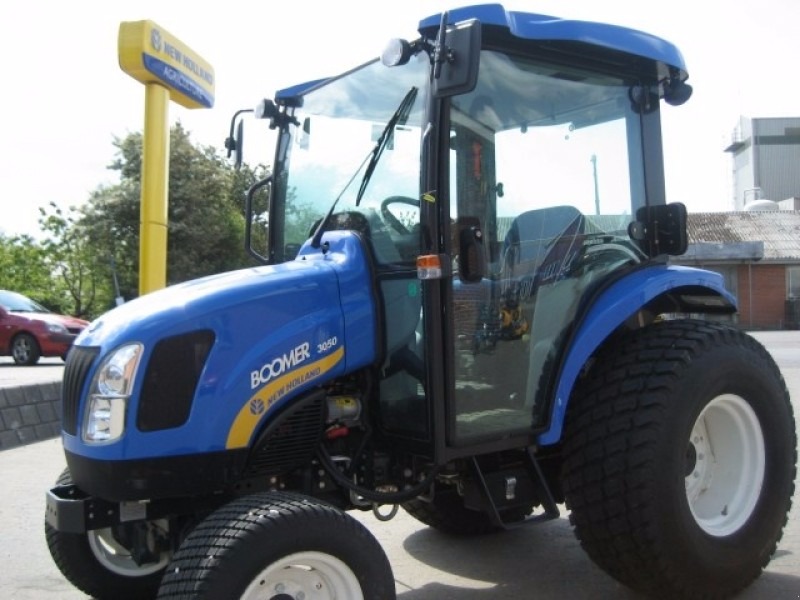

This service manual is for New Holland Boomer 3040 CVT, Boomer 3045 CVT, Boomer 3050 CVT Compact Tractor. It includes service, repair, removal, installation, disassembly, assembly, troubleshooting and other required information. This manual will make your repair work smoother and easier. You will realize that this is a very valuable manual.
Part number 48017760
1st edition English
November 2016
Replaces part number 47463786
Manual Type: Service Manual
Total Pages: 1965
Models Covered:
Boomer 3040 CVT / Boomer 3045 CVT / Boomer 3050 CVT
Compact Tractor
PIN ZCMB11001 and above; PIN ZDMB11925 and above
New Holland Tractor
Manual Contents:
INTRODUCTION
Engine – 10
Transmission – 21
Four-Wheel Drive (4WD) system – 23
Front axle system – 25
Rear axle system – 27
Power Take-Off (PTO) – 31
Brakes and controls – 33
Hydraulic systems – 35
Steering – 41
Cab climate control – 50
Electrical systems – 55
Platform, cab, bodywork, and decals – 90
SPECIAL TOOL INDEX
After the payment is completed, you will go directly to the download page, and you will also receive an email with a download link. If you cannot receive the email in time, please check the spam email.
File Format: PDF
Compatible: All Versions of Windows & Mac
Delivery: Instant Download
Language: English
Requirements: Adobe PDF Reader
