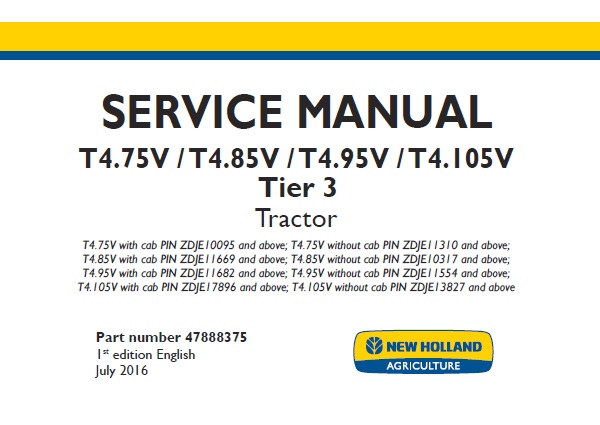

This service manual is for New Holland T4.75V , T4.85V , T4.95V , T4.105V Tier 3 Tractor. It includes service, repair, removal, installation, disassembly, assembly, troubleshooting and other required information. This manual will make your repair work smoother and easier. You will realize that this is a very valuable manual.
Part number 47888375
1st edition English
July 2016
Manual Type: Service Manual
Total Page: 1939
Models Covered:
T4.75V / T4.85V / T4.95V / T4.105V Tier 3 Tractor
T4.75V with cab PIN ZDJE10095 and above; T4.75V without cab PIN ZDJE11310 and above;
T4.85V with cab PIN ZDJE11669 and above; T4.85V without cab PIN ZDJE10317 and above;
T4.95V with cab PIN ZDJE11682 and above; T4.95V without cab PIN ZDJE11554 and above;
T4.105V with cab PIN ZDJE17896 and above; T4.105V without cab PIN ZDJE13827 and above
Manual Contents:
INTRODUCTION
Engine – 10
Clutch – 18
Transmission – 21
Four-Wheel Drive (4WD) system – 23
Front axle system – 25
Rear axle system – 27
Power Take-Off (PTO) – 31
Brakes and controls – 33
Hydraulic systems – 35
Hitches, drawbars, and implement couplings – 37
Steering – 41
Wheels – 44
Cab climate control – 50
Electrical systems – 55
Platform, cab, bodywork, and decals – 90
SPECIAL TOOL INDEX
