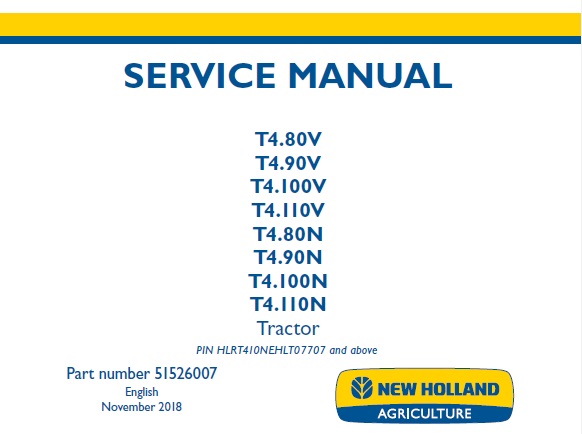

This service manual is for New Holland T4.80V T4.90V T4.100V T4.110V T4.80N T4.90N T4.100N T4.110N Tractor. It includes service, repair, removal, installation, disassembly, assembly, troubleshooting and other required information. This manual will make your repair work smoother and easier. You will realize that this is a very valuable manual.
Part number 51526007
English
November 2018
Manual Type: Service Manual
Total Page: 4089
Models Covered:
T4.80V
T4.90V
T4.100V
T4.110V
T4.80N
T4.90N
T4.100N
T4.110N
Tractor
PIN HLRT410NEHLT07707 and above
T4.100N With cab [HLRT410NEHLT07707 – ], T4.100N Without cab
[HLRT410N*JLT***** – ], T4.100V With cab [HLRT410VLHLT07235 –
], T4.100V Without cab [HLRT410VPHLT09817 – ], T4.110N With cab
[HLRT411NAHLT03795 – ], T4.110N Without cab [HLRT411N*JLT*****
– ], T4.110V With cab [HLRT411VKHLT03788 – ], T4.110V Without cab
[HLRT411VJHLT08703 – ], T4.80N With cab [HLRT480NTHLT06357
– ], T4.80N Without cab [HLRT480NLHLT07891 – ], T4.80V With cab
[HLRT480VEHLT07196 – ], T4.80V Without cab [HLRT480VEHLT07926
– ], T4.90N With cab [HLRT490NVHLT07943 – ], T4.90N Without cab
[HLRT490NAHLT07801 – ], T4.90V With cab [HLRT490VAHLT07992 – ], T4.90V
Without cab [HLRT490VKHLT05332 – ]
Manual Contents:
INTRODUCTION
Engine – 10
Clutch – 18
Transmission – 21
Four-Wheel Drive (4WD) system – 23
Front axle system – 25
Rear axle system – 27
Power Take-Off (PTO) – 31
Brakes and controls – 33
Hydraulic systems – 35
Hitches, drawbars, and implement couplings – 37
Frames and ballasting – 39
Steering – 41
Wheels – 44
Cab climate control – 50
Electrical systems – 55
Accessories – 88
Platform, cab, bodywork, and decals – 90
After the payment is completed, you will go directly to the download page, and you will also receive an email with a download link. If you cannot receive the email in time, please check the spam email.
File Format: PDF
Compatible: All Versions of Windows & Mac
Delivery: Instant Download
Language: English
Requirements: Adobe PDF Reader
