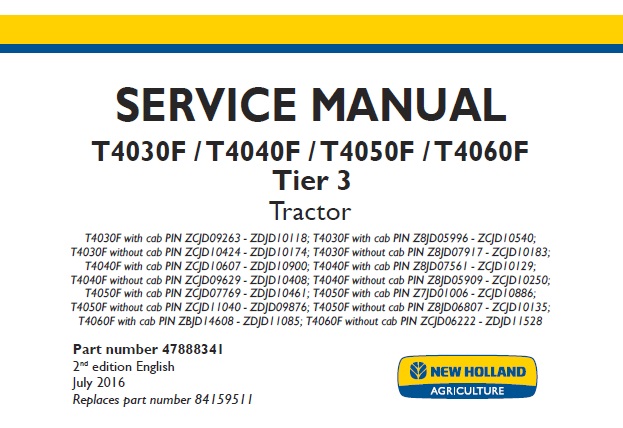

This service manual is for New Holland T4030F, T4040F, T4050F, T4060F Tier 3 Tractor. It includes service, repair, removal, installation, disassembly, assembly, troubleshooting and other required information. This manual will make your repair work smoother and easier. You will realize that this is a very valuable manual.
Part number 47888341
2nd edition English
July 2016
Replaces part number 84159511
Manual Type: Service Manual
Total Page: 2459
Models Covered:
T4030F with cab PIN ZCJD09263 – ZDJD10118; T4030F with cab PIN Z8JD05996 – ZCJD10540;
T4030F without cab PIN ZCJD10424 – ZDJD10174; T4030F without cab PIN Z8JD07917 – ZCJD10183;
T4040F with cab PIN ZCJD10607 – ZDJD10900; T4040F with cab PIN Z8JD07561 – ZCJD10129;
T4040F without cab PIN ZCJD09629 – ZDJD10408; T4040F without cab PIN Z8JD05909 – ZCJD10250;
T4050F with cab PIN ZCJD07769 – ZDJD10461; T4050F with cab PIN Z7JD01006 – ZCJD10886;
T4050F without cab PIN ZCJD11040 – ZDJD09876; T4050F without cab PIN Z8JD06807 – ZCJD10135;
T4060F with cab PIN ZBJD14608 – ZDJD11085; T4060F without cab PIN ZCJD06222 – ZDJD11528
Manual Contents:
INTRODUCTION
Engine – 10
Clutch – 18
Transmission – 21
Four-Wheel Drive (4WD) system – 23
Front axle system – 25
Rear axle system – 27
Power Take-Off (PTO) – 31
Brakes and controls – 33
Hydraulic systems – 35
Hitches, drawbars, and implement couplings – 37
Steering – 41
Wheels – 44
Cab climate control – 50
Electrical systems – 55
Platform, cab, bodywork, and decals – 90
SPECIAL TOOL INDEX
