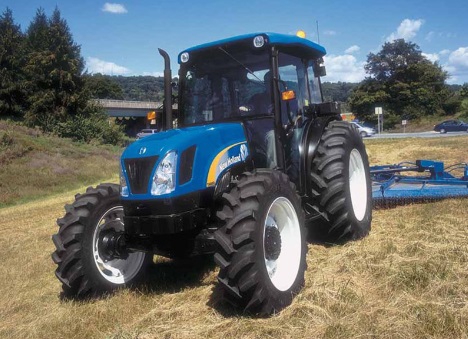

This service manual is for New Holland T4030F, T4040F, T4050F, T4060F Tractor. It includes service, repair, removal, installation, disassembly, assembly, troubleshooting and other required information. This manual will make your repair work smoother and easier. You will realize that this is a very valuable manual.
Part number 47888339
English
July 2016
Manual Type: Service Manual
Total Page: 2479
Models Covered:
T4030F With cab – Model Year 2012 [ZCJD09263 – ZDJD10118], T4030F
With cab [Z8JD05996 – ZCJD10540], T4030F Without cab – Model Year 2012
[ZCJD10424 – ZDJD10174], T4030F Without cab [Z8JD07917 – ZCJD10183],
T4040F With cab – Model Year 2012 [ZCJD10607 – ZDJD10900], T4040F
With cab [Z8JD07561 – ZCJD10129], T4040F Without cab – Model Year 2012
[ZCJD09629 – ZDJD10408], T4040F Without cab [Z8JD05909 – ZCJD10250],
T4050F With cab – Model Year 2012 [ZCJD07769 – ZDJD10461], T4050F
With cab [Z7JD01006 – ZCJD10886], T4050F Without cab – Model Year 2012
[ZCJD11040 – ZDJD09876], T4050F Without cab [Z8JD06807 – ZCJD10135],
T4060F With cab [ZBJD14608 – ZDJD11085], T4060F Without cab [ZCJD06222
– ZDJD11528]
Manual Contents:
INTRODUCTION
Engine – 10
Clutch – 18
Transmission – 21
Four-Wheel Drive (4WD) system – 23
Front axle system – 25
Rear axle system – 27
Power Take-Off (PTO) – 31
Brakes and controls – 33
Hydraulic systems – 35
Hitches, drawbars, and implement couplings – 37
Steering – 41
Wheels – 44
Cab climate control – 50
Electrical systems – 55
Platform, cab, bodywork, and decals – 90
SPECIAL TOOL INDEX
After the payment is completed, you will go directly to the download page, and you will also receive an email with a download link. If you cannot receive the email in time, please check the spam email.
File Format: PDF
Compatible: All Versions of Windows & Mac
Delivery: Instant Download
Language: English
Requirements: Adobe PDF Reader
