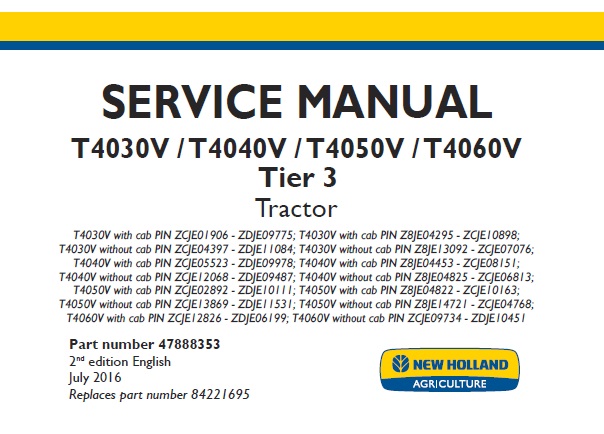

This service manual is for New Holland T4030V , T4040V , T4050V , T4060V Tier 3 Tractor. It includes service, repair, removal, installation, disassembly, assembly, troubleshooting and other required information. This manual will make your repair work smoother and easier. You will realize that this is a very valuable manual.
Part number 47888353
2nd edition English
July 2016
Replaces part number 84221695
North America
Manual Type: Service Manual
Total Page: 2529
Models Covered:
T4030V with cab PIN ZCJE01906 – ZDJE09775; T4030V with cab PIN Z8JE04295 – ZCJE10898;
T4030V without cab PIN ZCJE04397 – ZDJE11084; T4030V without cab PIN Z8JE13092 – ZCJE07076;
T4040V with cab PIN ZCJE05523 – ZDJE09978; T4040V with cab PIN Z8JE04453 – ZCJE08151;
T4040V without cab PIN ZCJE12068 – ZDJE09487; T4040V without cab PIN Z8JE04825 – ZCJE06813;
T4050V with cab PIN ZCJE02892 – ZDJE10111; T4050V with cab PIN Z8JE04822 – ZCJE10163;
T4050V without cab PIN ZCJE13869 – ZDJE11531; T4050V without cab PIN Z8JE14721 – ZCJE04768;
T4060V with cab PIN ZCJE12826 – ZDJE06199; T4060V without cab PIN ZCJE09734 – ZDJE10451
Manual Contents:
INTRODUCTION
Engine – 10
Clutch – 18
Transmission – 21
Four-Wheel Drive (4WD) system – 23
Front axle system – 25
Rear axle system – 27
Power Take-Off (PTO) – 31
Brakes and controls – 33
Hydraulic systems – 35
Hitches, drawbars, and implement couplings – 37
Steering – 41
Wheels – 44
Cab climate control – 50
Electrical systems – 55
Platform, cab, bodywork, and decals – 90
SPECIAL TOOL INDEX
After the payment is completed, you will go directly to the download page, and you will also receive an email with a download link. If you cannot receive the email in time, please check the spam email.
File Format: PDF
Compatible: All Versions of Windows & Mac
Delivery: Instant Download
Language: English
Requirements: Adobe PDF Reader
