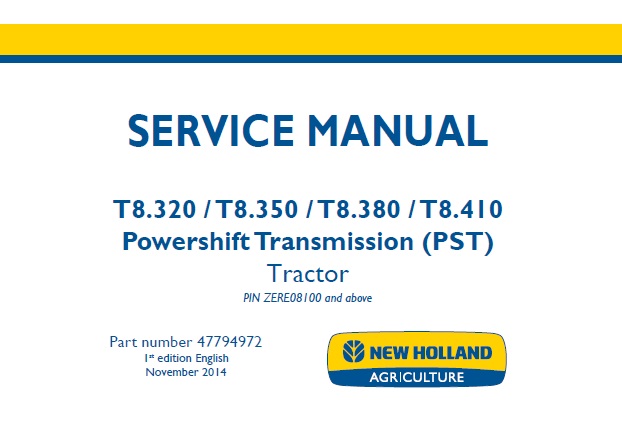

This service manual is for New Holland T8.320, T8.350, T8.380, T8.410 Powershift Transmission (PST) Tractor. It includes service, repair, removal, installation, disassembly, assembly, troubleshooting and other required information. This manual will make your repair work smoother and easier. You will realize that this is a very valuable manual.
Part number 47794972
1st edition English
November 2014
Manual Type: Service Manual
Total Page: 4263
Models Covered:
T8.320 / T8.350 / T8.380 / T8.410
Powershift Transmission (PST)
PIN ZERE08100 and above
New Holland Tractor
T8.320 696110028 PST TIER 4B [ZERE08100 – ]
T8.350 696110038 PST TIER 4B [ZERE08100 – ]
T8.380 696110048 PST TIER 4B [ZERE08100 – ]
T8.410 696110058 PST TIER 4B [ZERE08100 – ]
Product Market Product Engine
T8.320 696110028 PST TIER 4B [ZERE08100 – ] Europe F2CFE613G*B001
T8.350 696110038 PST TIER 4B [ZERE08100 – ] Europe F2CFE614G*B002
T8.380 696110048 PST TIER 4B [ZERE08100 – ] Europe F2CFE614D*B002
T8.410 696110058 PST TIER 4B [ZERE08100 – ] Europe F2CFE614C*B002
Manual Contents:
INTRODUCTION
Engine – 10
Clutch – 18
Transmission – 21
Four-Wheel Drive (4WD) system – 23
Front axle system – 25
Rear axle system – 27
Power Take-Off (PTO) – 31
Brakes and controls – 33
Hydraulic systems – 35
Hitches, drawbars, and implement couplings – 37
Steering – 41
Wheels – 44
Cab climate control – 50
Electrical systems – 55
Platform, cab, bodywork, and decals – 90
SPECIAL TOOL INDEX
After the payment is completed, you will go directly to the download page, and you will also receive an email with a download link. If you cannot receive the email in time, please check the spam email.
File Format: PDF
Compatible: All Versions of Windows & Mac
Delivery: Instant Download
Language: English
Requirements: Adobe PDF Reader
