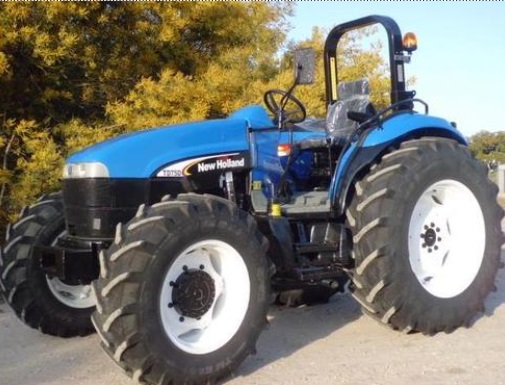

New Holland TD75D, TD95D, TD95D HIGH CLEARANCE

This service manual is for New Holland TD75D, TD95D, TD95D HIGH CLEARANCE Tractor. It includes service, repair, removal, installation, disassembly, assembly, troubleshooting and other required information. This manual will make your repair work smoother and easier. You will realize that this is a very valuable manual.

Part number 87572972
English
07 / 2006

Manual Type: Service Manual
Total Page: 642

Models Covered:

TD75D, TD95D, TD95D HIGH CLEARANCE

Manual Contents:
INTRODUCTION
Engine – 10
Clutch – 18
Transmission – 21
Four-Wheel Drive (4WD) system – 23
Front axle system – 25
Rear axle system – 27
Power Take-Off (PTO) – 31
Brakes and controls – 33
Hydraulic systems – 35
Steering – 41
Electrical systems – 55
Platform, cab, bodywork, and decals – 90

After the payment is completed, you will go directly to the download page, and you will also receive an email with a download link. If you cannot receive the email in time, please check the spam email.

File Format: PDF
Compatible: All Versions of Windows & Mac
Delivery: Instant Download
Language: English
Requirements: Adobe PDF Reader
